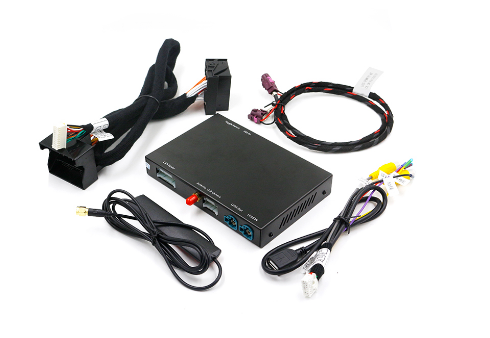

QUESTION&ANSWER

1. Wireless carplay connection

1) Turn on WIFI .

2) Turn on Bluetooth , and connect Carplay’s bluetooth.

3) After the bluetooth connection is completed, the following prompts will pop up, click ‘Use carplay’ .

4) After the connection is successful, the Carplay icon will display on the main menu of the screen. And it will enter Carplay automatically.

2. Wireless Android auto connection

1) Turn on WIFI .

2) Turn on Bluetooth .

3) Search the Android phone’s bluetooth on the screen in carplay system.

4) Pair the bluetooth with your phone.

5)  After connecting the bluetooth, it will pop up the following prompts.

6) Then it will enter Android auto automatically.

3. Wired Android auto connection

1) Download Android auto APP on your Android phone.

2) Click ‘WireAuto’ icon the prompt ‘Please connect your Android device’ will pop up.

3) Plug your phone to USB port. then it will enter Android auto automatically.

4. Wireless Airplay connection

1) Click ‘Airplay’ icon first , the pairing information with the phone will be displayed.

2) Search wifi signal of Airplay and conenct.

3) Turn on Airplay.

4) After connecting Airplay, it will show like.

Note: If you have connected Carplay before, you need to disconnect Carplay first!

5. Wired Autolink connection

1) Download Android auto APP on your Android phone.

2) Click ‘Autolink’ icon, the prompt ‘Please connect your Android device’ will pop up.

3) Plug your phone to USB port. then it will enter Android auto automatically.

6. Supportted wireless Android auto mobile phone models

1) Pixel or Pixel XL

2) Pixel 2 or Pixel 2 XL

3) Pixel 3 or Pixel 3 XL

4) Pixel 4 or Pixel 4 XL

5) Nexus 5X or 6P

6) Samsung S8 S9 S10

7. For Audi, no sound in Carplay system

If there is no AUX setting function in the original car setting, customer needs purchase the auxiliary AMI cable by himself,and need to check the number of contacts on both sides of the port.





8. Front/rear camera setup and connection

Reverse camera connection:

Mehod 1:

1) Connect the reverse camera to CVBS OUT labeled ‘Reverse camera’.

2) Connect the cable labeled ’12V reverse camera(yellow)’ to camera power.

3) Setting → Reverse → Reverse camera → Aftermarket.

Mehod 2:

1) Connect the reverse camera to CVBS OUT labeled ‘Reverse camera’

2)Setting → Reverse → Reverse camera → Aftermarket

Front camera conenction:

1) Connect the reverse camera to CVBS OUT labeled ‘Forward camera’

2) Connect the cable labeled ’12V ACC(Red)’ to camera power cable.

3) Note: Adjusting ‘Front View Time’ value to display the front camera images at the end or the beginning of reversing.

9. The NBT/CIC original car microphone, but does not work

1) Need to connect to the original car microphone through a microphone adapter cable.

2) CIC and NBT microphone adapter cables share: label ‘MIC-22C-DZ’ (compatible with Volkswagen models)



10. Cannot connect to wireless carplay

1) Tap carplay Bluetooth or wifi on the mobile phone

2) At the same time, clear the Bluetooth devices on the mobile phone and the car, and then pair and connect

3) Go to WirelessDev to reset the Bluetooth, and then pair and connect.

4) Go to the mobile phone to restore the mobile network

5) Check whether the carplay on the mobile phone is turned on (settings-screen usage time-content and privacy access permissions-allowed APP)

11. CIC carplay box connection

Due to different production batches, check the label on the cic box. If the box is high-speed and low-speed separately, use Figure 1 for wiring connection. If it is a high- and low-speed compatible box, follow Figure 2 for wiring connection.

1) CIC carplay box connection:

note:idrive konb adapter cable connection:

2)CIC high and low speed compatible carplay box connection:

14.Idrve knob doesn't work in AUDI carplay box

After a few AUDI carplay boxes are installed, the idrive knob does not work. It may be a problem with the can power cable, which needs to be modified as shown below:

15.AUDI installation on AUDI carplay box

1)Q3 AUDI wiring connection diagram:

2)Q5l AUDI wiring connection diagram:

3)A8 AUDI wiring connection diagram:

4)Other AUDI wiring connection diagram:

18. LEXUS carplay box wiring connection and DIP set

1)car model with idrive knob controller:

2)car model with big touch screen controller:

3)car model with joystick and small touch screen controller:

19.How to distinguish the BENZ whether can be installed

Only the car models with pics below can be installed with box of 4.5 and 5.x .









20.BENZ box installation with 4.5 and 5.x ntg

1)4.5 box installation

note:how to activate the 4.5 AUX:

2)5.X box installation
