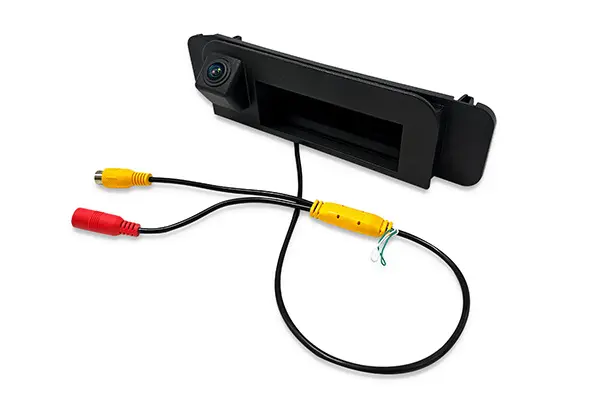

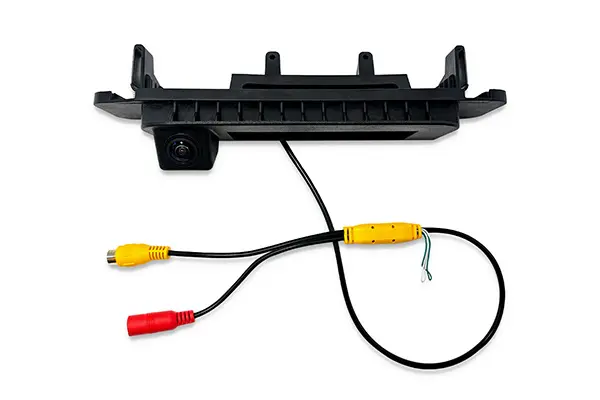

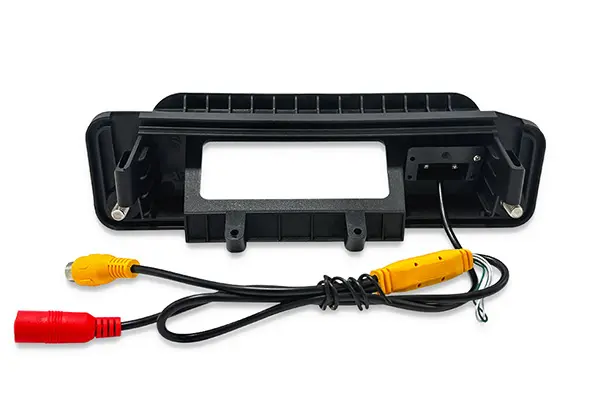

Reversing camera


* High definition and waterproof
* Distance reference line
* Prevent your car from bumping into others


* It\’s HIGHLY RECOMMENDED to check the sizes of the camera first and make a com
parison with your car trunk handle.
* By default, the camera will be produced as NTSC and with parking lines.
* Important: No LVDS connectors output to original screen.

Compatible models

Benz 2015/16 C class
Benz 2015/16 CLA class

Rearview camera parameters:

Solution: 1346+885
Sensor: Night vision CMOS
Format: CVBS N/AHD720P 25fps
Pixels: 100W
Interface: BMW head/AV
Angle: Horizontal 140°
Signal-to-noise ratio: ≥43dB
White balance: Automatic
Synchronization mode: Internal synchronization
Working temperature: -20℃-80℃
Waterproof level: IP68
Power adapter: 9V-15V±10%
Working current: 85mA±5mA

Item Includes:

– 1 x handle Reversing Camera
– 1 x Power cable
– 1 x Video cable

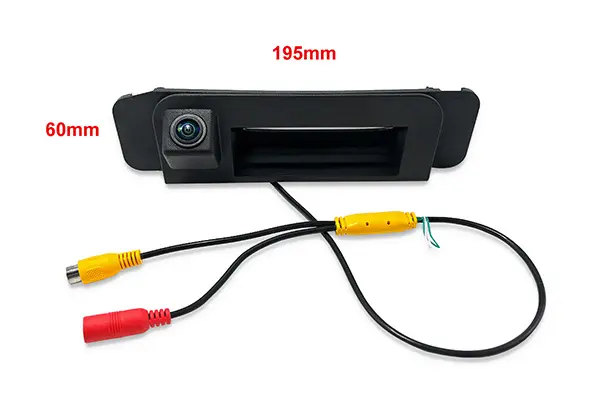

19.5cmx6cm 0.25kg


Installation steps
